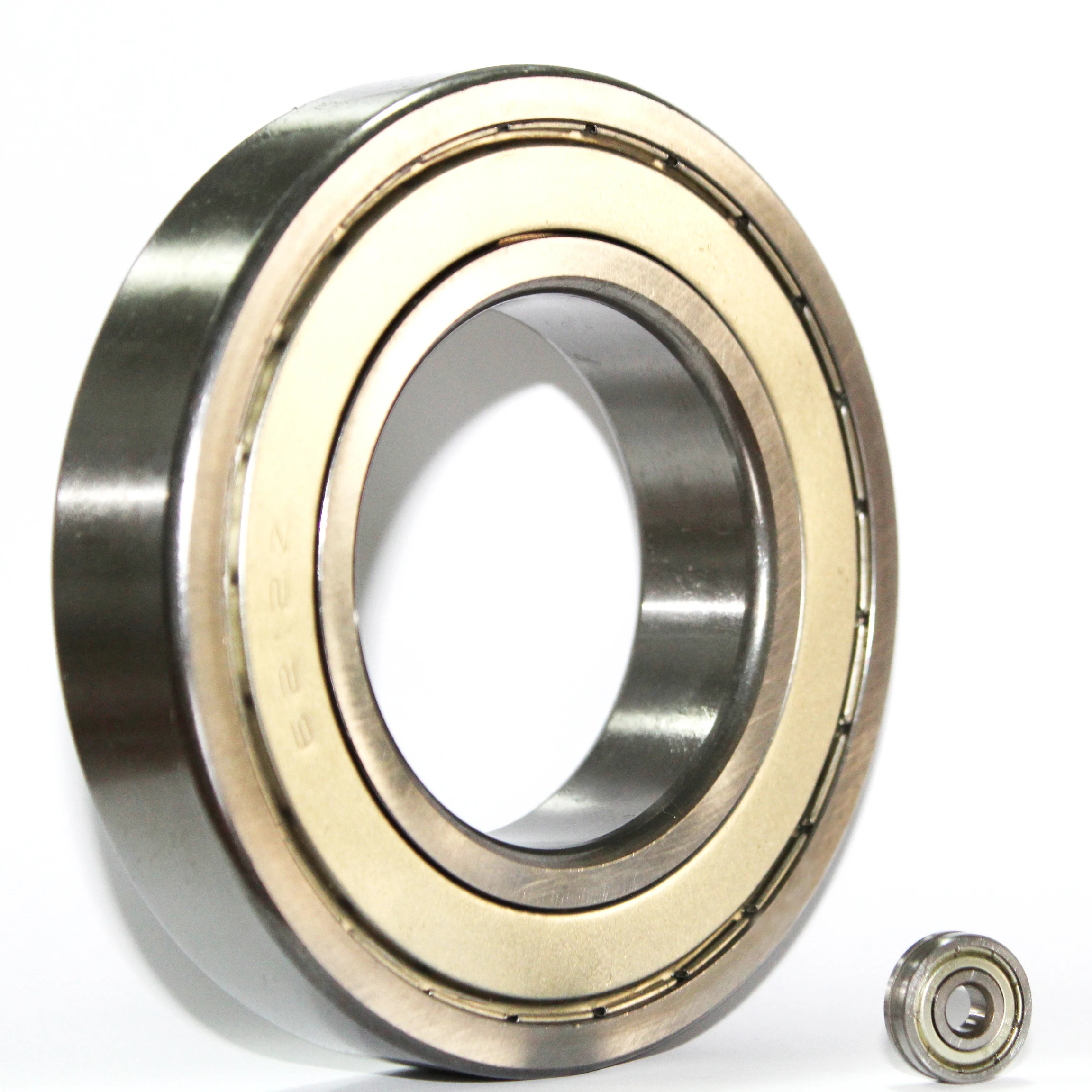

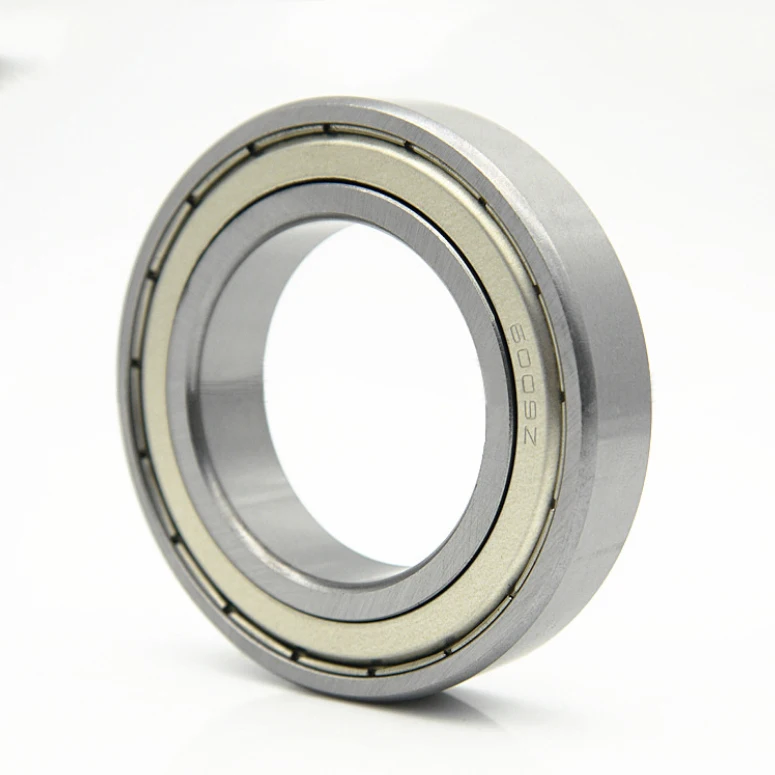

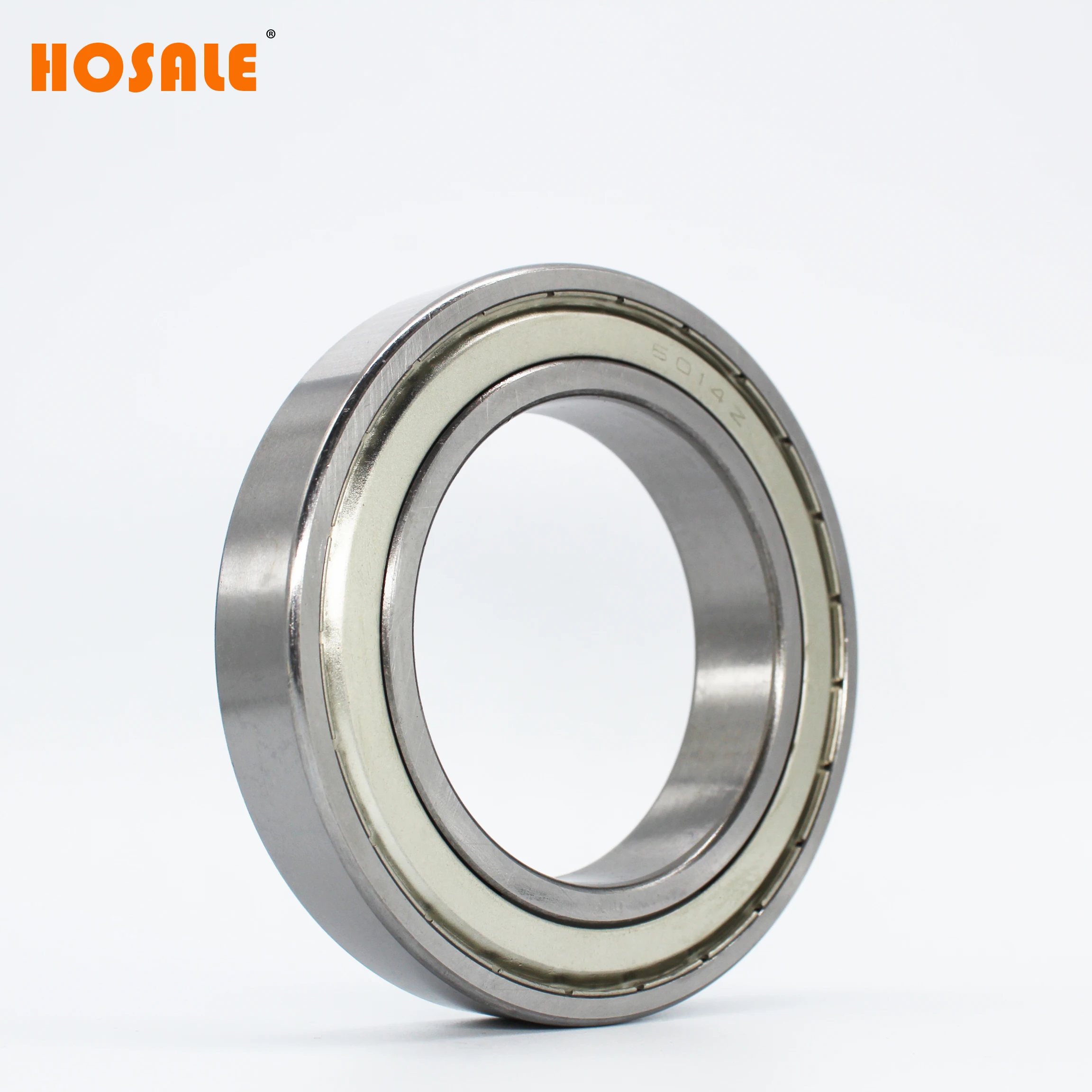

Z2V2 Quality 6008 6009 6010 6011 6012 6013 6014 Deep groove Ball Bearing
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-92. OD Size: 3mm~200mm3. ID Size: 0.5mm~180mm4. Certification: ISO9001, SGS, CTI, ROHS
Product NameDEEP GROOVE BALL BEARINGMaterialChrome Steel ,Carbon steel,St...
- Overview
- Related Products
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product Name |
DEEP GROOVE BALL BEARING |
Material |
Chrome Steel ,Carbon steel,Stainless steel |
Series |
Series 6000,6200,6300,6400 ,6900,6800, etc. |
Clearance |
C2,C0,C3,C4,C5 |
Precision grade |
P0,P6,P5,P4,P2 or ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9 |
Reference Standard |
DIN620(Germany), ANSI(America),ISO,INA, NTN, NSK,etc. |
Delivery Date |
Normally ready goods and stock within 7 days |
Used |
Electric machine, motocycle,ATM,fan,conveyor, cement mixer etc |
Following is the standard data.If you need more higher requirements,pls inquiry us.We can customize for you.
Item |
6008 open ZZ 2RS |
Size |
ID40 x OD68 x W15mm,0.1796kg |
Radius (min.r) |
1.0mm/0.039 inch |
Basic load Rating KN |
Dynamic 13.10 C Static 9.45 C。
|
Ball complement |
NO 12 Size 7.938mm
|
Max Runout Speed |
10000 r/min with grease 12000 r/min with oil
|
Item |
6009 open ZZ 2RS |
Size |
ID45 x OD75 x W16mm,0.2273kg |
Radius (min.r) |
1.0mm/0.039 inch |
Basic load Rating KN |
Dynamic 16.22 C Static 11.96 C。
|
Ball complement |
NO 12 Size 9mm
|
Max Runout Speed |
9200r/min with grease 11000 r/min with oil
|
Item |
6010 open ZZ 2RS |
Size |
ID50 x OD80 x W16mm,0.2473kg |
Radius (min.r) |
1.0mm/0.039 inch |
Basic load Rating KN |
Dynamic 16.94 C Static 12.95 C。
|
Ball complement |
NO 13 Size 9mm
|
Max Runout Speed |
8400r/min with grease 9900 r/min with oil
|
Item |
6011 open ZZ 2RS |
Size |
ID55 x OD90 x W18mm,0.3575kg |
Radius (min.r) |
1.1mm/0.043 inch |
Basic load Rating KN |
Dynamic 23.28 C Static 17.86 C。
|
Ball complement |
NO 12 Size 10.319mm
|
Max Runout Speed |
7600r/min with grease 8900 r/min with oil
|
Item |
6012 open ZZ 2RS |
Size |
ID60 x OD95 x W18mm,0.3811kg |
Radius (min.r) |
1.1mm/0.043 inch |
Basic load Rating KN |
Dynamic 24.35 C Static 19.35 C。
|
Ball complement |
NO 13 Size 10.319mm
|
Max Runout Speed |
7100r/min with grease 8400 r/min with oil
|
Item |
6013 open ZZ 2RS |
Size |
ID65x OD100 x W18mm,0.435kg |
Radius (min.r) |
1.1mm/0.043 inch |
Basic load Rating KN |
Dynamic 24.66 C Static 19.74 C。
|
Ball complement |
NO 13 Size 11.1125mm
|
Max Runout Speed |
6600r/min with grease 7800 r/min with oil
|
Item |
6014 open ZZ 2RS |
Size |
ID70x OD110 x W20mm,0.5629kg |
Radius (min.r) |
1.1mm/0.043 inch |
Basic load Rating KN |
Dynamic 31.60 C Static 25.9 C。
|
Ball complement |
NO 13 Size 12mm
|
Max Runout Speed |
6100r/min with grease 7200 r/min with oil
|
The exihibition
Our Company
Factory---one-stop productions
Workshop
Warehouse
Inspection Dept.
Packing & Delivery
Customized colorful box
Independent small package
Tube packaging
Delivery
Wooden case
Cartons
Main Products
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.We support video see factory in this serious condition.
Q: How long is your delivery time?
A: Generally it is 1~3 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
