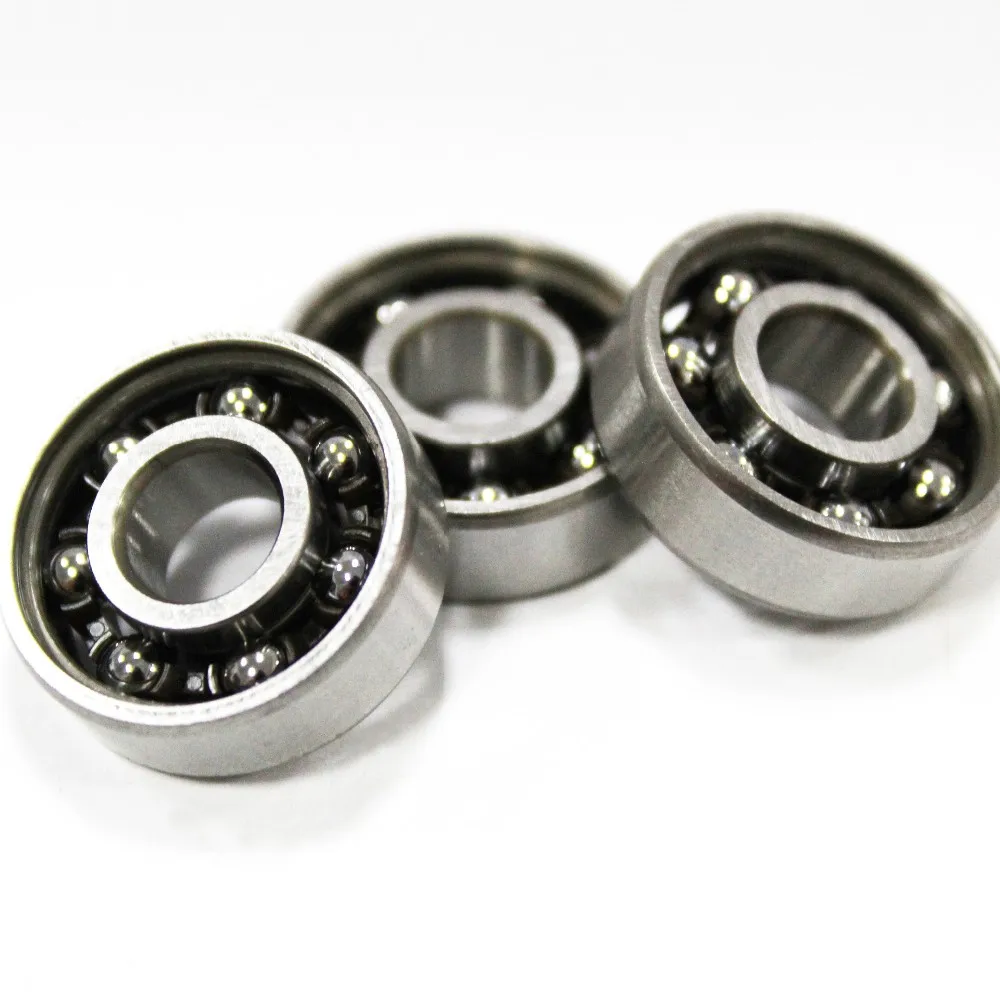

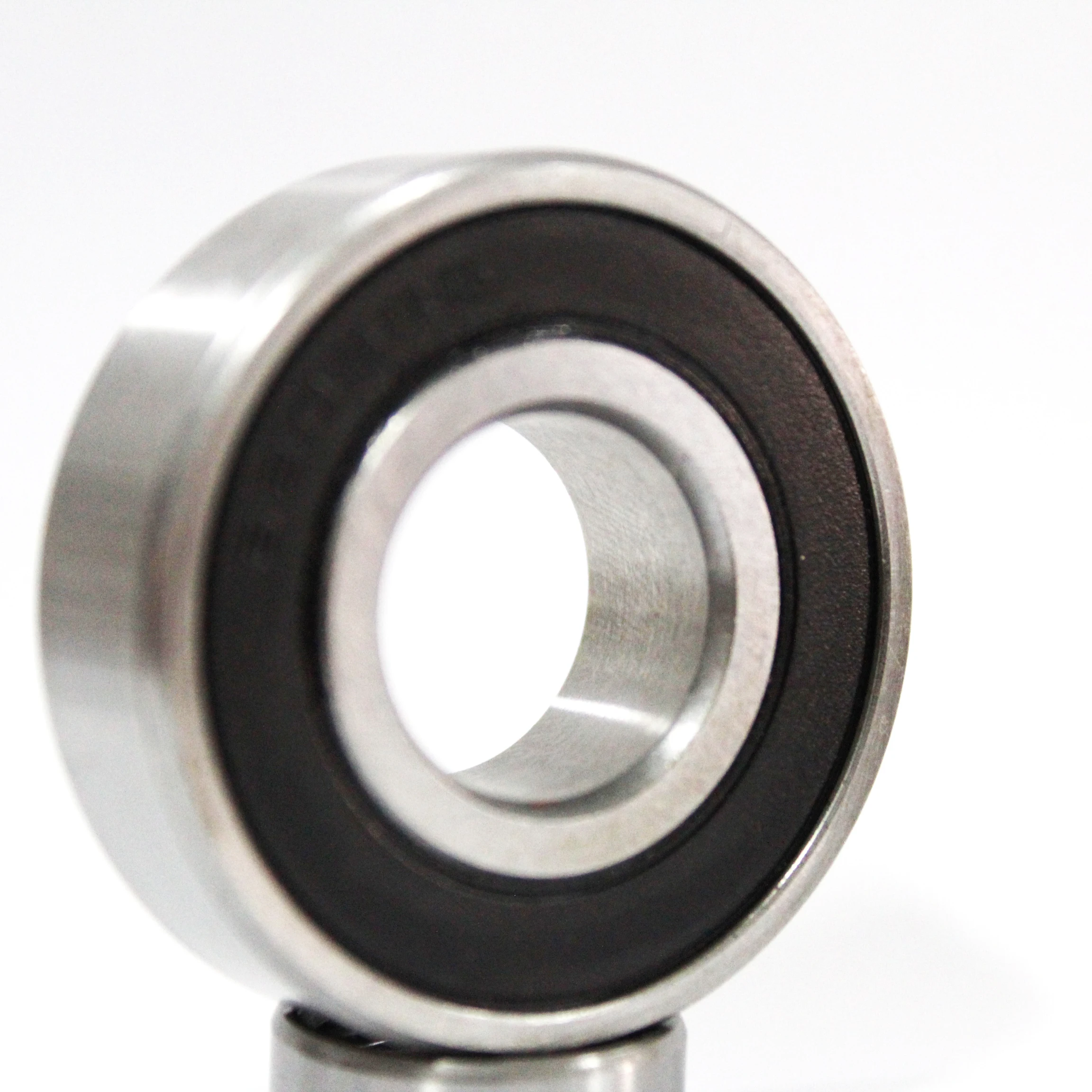

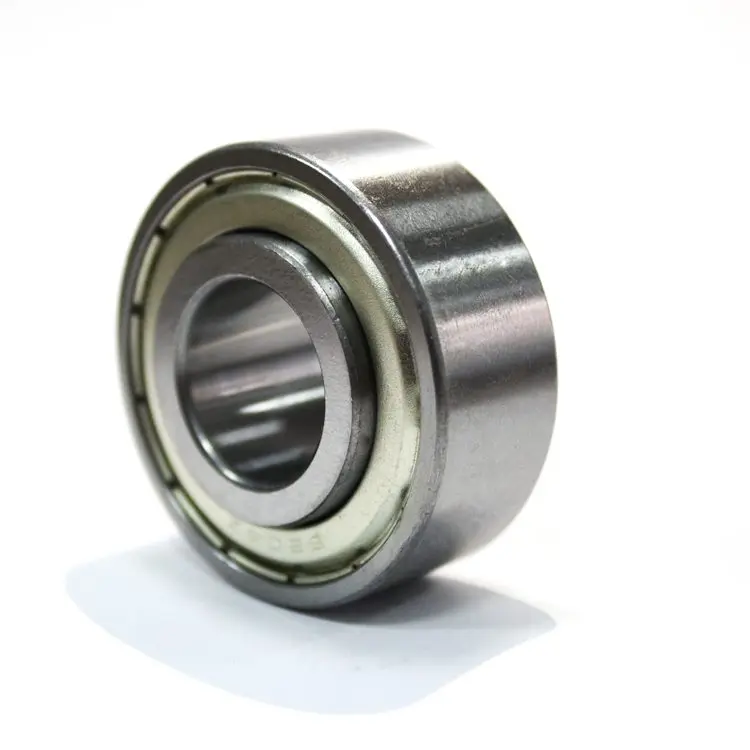

Manufacturer Price High Quality 6200 6201 6202 6203 6204 6205 Deep groove Ball Bearing
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-92. OD Size: 3mm~200mm3. ID Size: 0.5mm~180mm4. Certification: ISO9001, SGS, CTI, ROHS
Product NameDEEP GROOVE BALL BEARINGMaterialChrome Steel ,Carbon steel,Sta...
- Overview
- Related Products
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product Name |
DEEP GROOVE BALL BEARING |
Material |
Chrome Steel ,Carbon steel,Stainless steel |
Series |
Series 6000,6200,6300,6400 ,6900,6800, etc. |
Clearance |
C2,C0,C3,C4,C5 |
Precision grade |
P0,P6,P5,P4,P2 or ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9 |
Reference Standard |
DIN620(Germany), ANSI(America),ISO,INA, NTN, NSK,etc. |
Delivery Date |
Normally ready goods and stock within 7 days |
Used |
Electric machine, motocycle,ATM,fan,conveyor, cement mixer etc |
Item |
6200 open ZZ 2RS |
Size |
ID10 x OD30 x W9mm,0.031kg |
Radius (min.r) |
0.6mm/0.024 inch |
Basic load Rating KN |
Dynamic 5.1 C Static 2.38 C。
|
Ball complement |
NO 8 Size 4.763mm
|
Max Runout Speed |
24000 r/min with grease 29000 r/min with oil
|
Item |
6201 open ZZ 2RS |
Size |
ID12 x OD32 x W10mm,0.0351kg |
Radius (min.r) |
0.6mm/0.024 inch |
Basic load Rating KN |
Dynamic 6.82 C Static 3.05 C。
|
Ball complement |
NO 7 Size 5.953mm
|
Max Runout Speed |
22000 r/min with grease 27000 r/min with oil
|
Item |

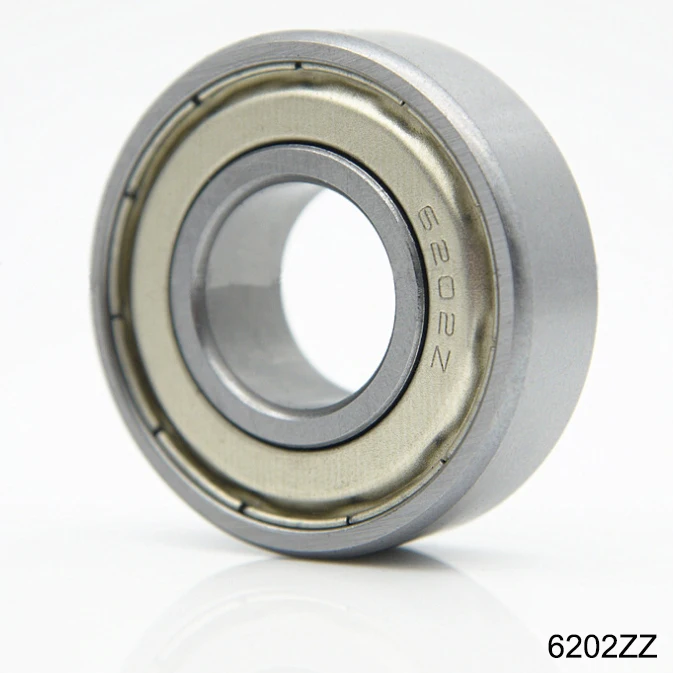

6202 open ZZ 2RS |
Size |
ID15 x OD35 x W11mm,0.0443kg |
Radius (min.r) |
0.6mm/0.024 inch |
Basic load Rating KN |
Dynamic 7.65 C Static 3.72 C。
|
Ball complement |
NO 8 Size 5.953mm
|
Max Runout Speed |
20000r/min with grease24000 r/min with oil |
Item |
6203 open ZZ 2RS |
Size |
ID17 x OD40 x W12mm,0.063kg |
Radius (min.r) |
0.6mm/0.024 inch |
Basic load Rating KN |
Dynamic 9.58 C Static 4.78 C。
|
Ball complement |
NO 8 Size 6.747mm
|
Max Runout Speed |
17000 r/min with grease 21000 r/min with oil
|
Item |
6204 open ZZ 2RS |
Size |
ID20 x OD47 x W14mm,0.1009kg |
Radius (min.r) |
1.0mm/0.039 inch |
Basic load Rating KN |
Dynamic 12.8 C Static 6.65 C。
|
Ball complement |
NO 8 Size 7.938mm
|
Max Runout Speed |
15000 r/min with grease 17000 r/min with oil
|
Item |

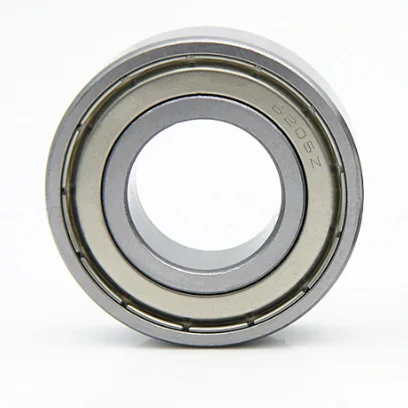

6205 open ZZ 2RS |
Size |
ID25x OD52 x W15mm,0.1245kg |
Radius (min.r) |
1.0mm/0.039 inch |
Basic load Rating KN |
Dynamic 14.0 C Static 7.88 C。
|
Ball complement |
NO 9 Size 7.938mm
|
Max Runout Speed |
13000 r/min with grease 15000 r/min with oil
|
