Manufacture Price Mini Size S693 S694 S695 S696 S697 S698 Stainless Steel Bearing
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-92. OD Size: 3mm~200mm3. ID Size: 0.5mm~180mm4. Certification: ISO9001, SGS, CTI, ROHS
Product NameDEEP GROOVE BALL BEARINGMaterialChrome Steel ,Carbon steel,Sta...
- Overview
- Related Products
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product Name |
DEEP GROOVE BALL BEARING |
Material |
Chrome Steel ,Carbon steel,Stainless steel |
Series |
Series 6000,6200,6300,6400 ,6900,6800, etc. |
Clearance |
C2,C0,C3,C4,C5 |
Precision grade |
P0,P6,P5,P4,P2 or ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9 |
Reference Standard |
DIN620(Germany), ANSI(America),ISO,INA, NTN, NSK,etc. |
Delivery Date |
Normally ready goods and stock within 7 days |
Used |
Electric machine, motocycle,ATM,fan,conveyor, cement mixer etc |

Item |
693 ZZ 2RS |
Size |
ID3 x OD8 x W3mm,0.0006kg |
Radius (min.r) |
0.15mm/0.006 inch |
Basic load Rating KN |
Dynamic 0.56 C Static 0.18 C。
|
Ball complement |
NO 6 Size 1.588mm
|
Max Runout Speed |
54000 r/min with grease 63000 r/min with oil
|

Item |

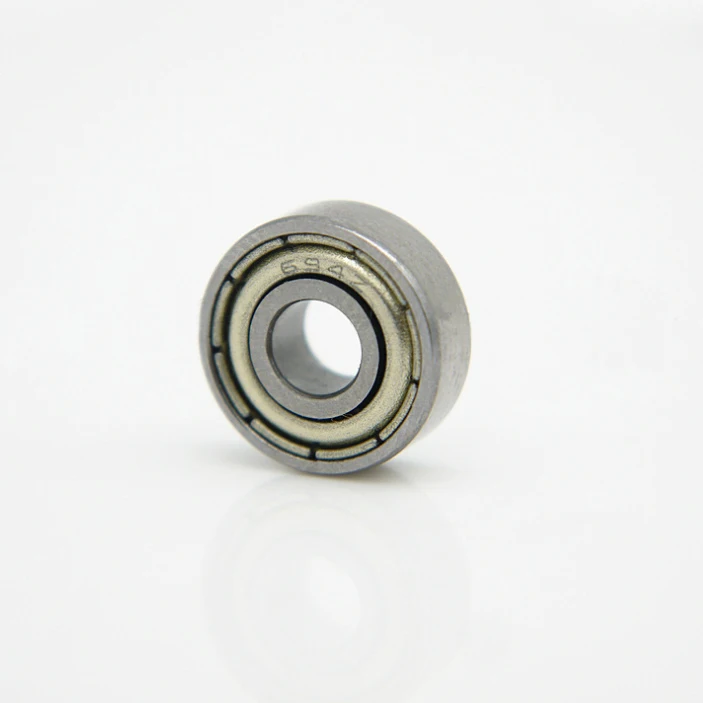

694 ZZ 2RS |
Size |
ID4 x OD11 x W4mm,0.0018kg |
Radius (min.r)
|
0.15mm/0.006 inch |
Basic load Rating KN |
Dynamic 0.715 C Static 0.276 C。
|
Ball complement |
NO 7 Size 2.0mm
|
Max Runout Speed |
45000 r/min with grease 52000 r/min with oil
|

Item |
695 ZZ 2RS |
Size |
ID5 x OD13 x W4mm,0.0024kg |
Radius (min.r)
|
0.2mm/0.008 inch |
Basic load Rating KN |
Dynamic 1.08 C Static 0.42 C。
|
Ball complement |
NO 8 Size 2.0mm
|
Max Runout Speed |
34000 r/min with grease 43000 r/min with oil
|

Item |

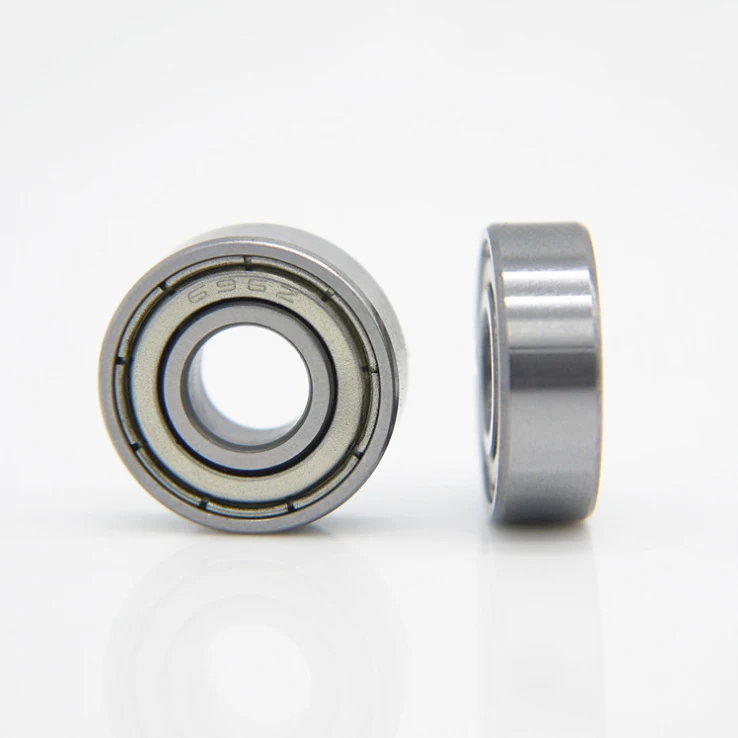

696 ZZ 2RS |
Size |
ID6 x OD15 x W5mm,0.0038kg |
Radius (min.r)
|
0.2mm/0.008 inch |
Basic load Rating KN |
Dynamic 1.48 C Static 0.060 C。
|
Ball complement |
NO 8 Size 2.381mm
|
Max Runout Speed |
32000 r/min with grease 40000 r/min with oil
|

Item |

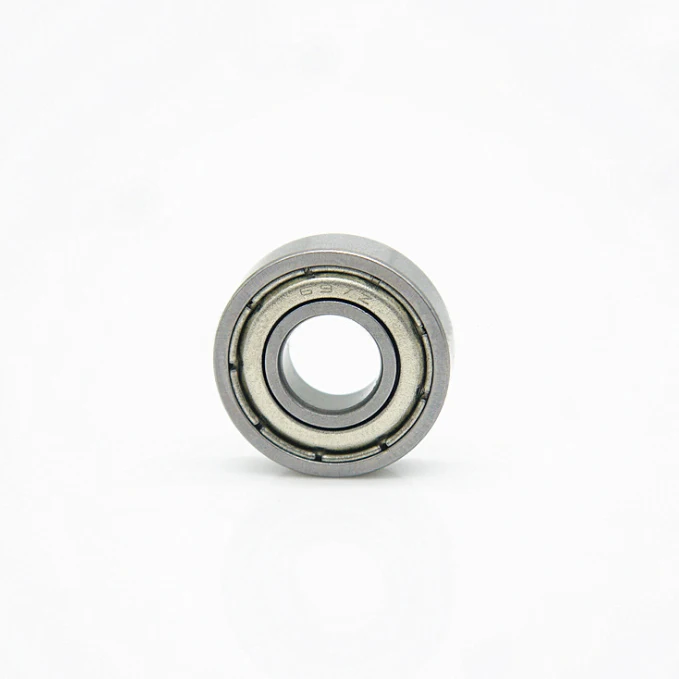

697 ZZ 2RS |
Size |
ID7 x OD17 x W5mm,0.0052kg |
Radius (min.r) |
0.2mm/0.008 inch |
Basic load Rating KN |
Dynamic 2.02 C Static 0.80 C。
|
Ball complement |
NO 9 Size 2.381mm
|
Max Runout Speed |
30000 r/min with grease 38000 r/min with oil
|

Item |
698 ZZ 2RS |
Size |
ID8x OD19 x W6mm,0.0073kg |
Radius (min.r)
|
0.3mm/0.012 inch |
Basic load Rating KN |
Dynamic 2.25 C Static 0.92 C。
|
Ball complement |
NO 7 Size 3.5mm
|
Max Runout Speed |
28000 r/min with grease 36000 r/min with oil
|
